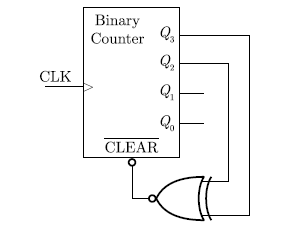

Q. 42 The figure shows a binary counter with synchronous clear input. With the decoding logic shown, the counter works as a

Gate EC-2015 - 2 Question Paper With Solutions

(A) mod-2 counter

(B) mod-4 counter

(C) mod-5 counter

(D) mod-6 counter

Answer: (C)

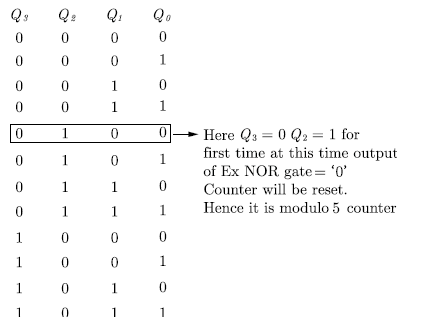

Explanation:

Gate EC-2015 - 2 Question Paper With Solutions

Gate EC-2015 - 2 Question Paper With SolutionsGate EC-2015 - 2 Question Paper With Solutions
