Gate EC-2015 – 2 Question Paper With Solutions

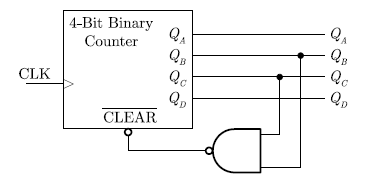

Q. 13 A mod-n counter using a synchronous binary up-counter with synchronous clear input is shown in the figure. The value of n is_______.

Gate EC-2015 - 2 Question Paper With Solutions

Answer:(7)

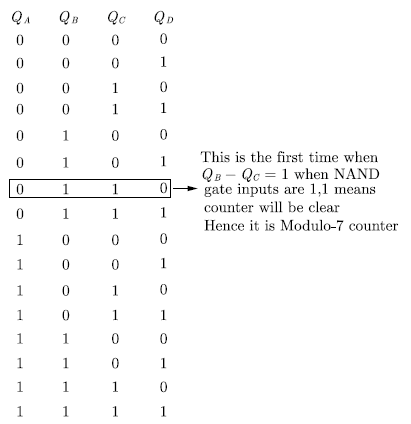

Explanation:

Gate EC-2015 - 2 Question Paper With Solutions

Gate EC-2015 - 2 Question Paper With Solutions
