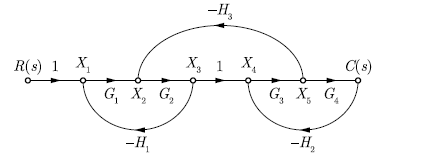

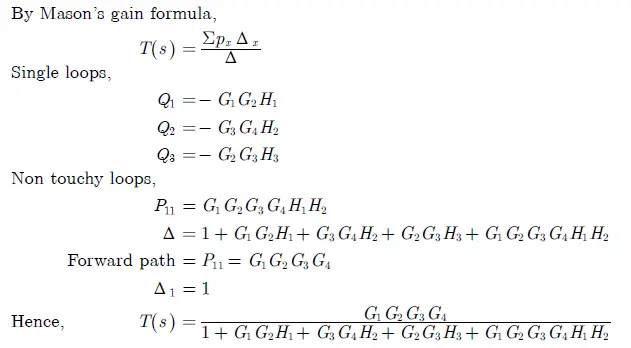

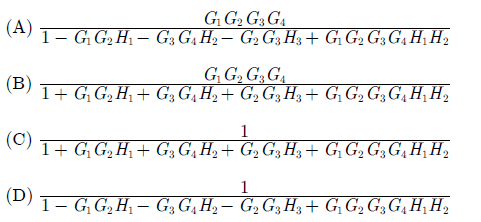

Gate Solved Gate EC-2015 – 2 Question Paper With Solutions Facebook WhatsApp Twitter Pinterest Email Q. 34 For the signal flow graph shown in the figure, the value of is Answer: (B) Explanation: Learn More: Gate EE-2010 Question Paper With Solutions
