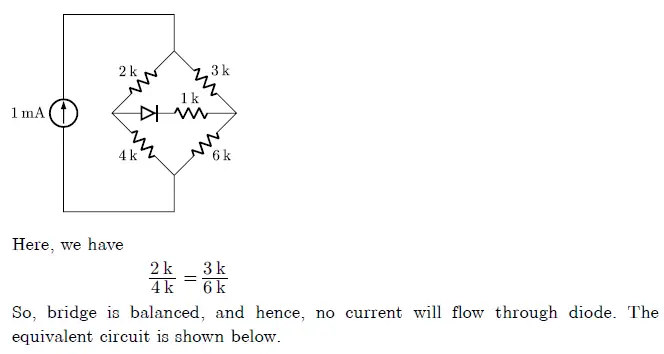

Q. 48 The diode in the circuit given below has VON = 0.7 V but is ideal otherwise. The current (in mA) in the
resistor is ________.
Answer: (0.6)
Explanation:
Q. 48 The diode in the circuit given below has VON = 0.7 V but is ideal otherwise. The current (in mA) in the resistor is ________.
Answer: (0.6)

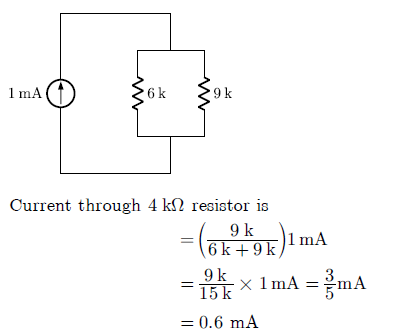

Explanation:
