Q. 62 A dc voltage of 10V is applied across an n-type silicon bar having a rectangular cross-section and a length of 1 cm as shown in figure. The donor doping concentration Gate EC-2015 - 2 Question Paper With Solutionsand the mobility of electronsGate EC-2015 - 2 Question Paper With SolutionsGate EC-2015 - 2 Question Paper With Solutions, respectively. The average time (in μs ) taken by the electrons to move from one end of the bar to other end is _______.

Gate EC-2015 - 2 Question Paper With Solutions

Answer: (100)

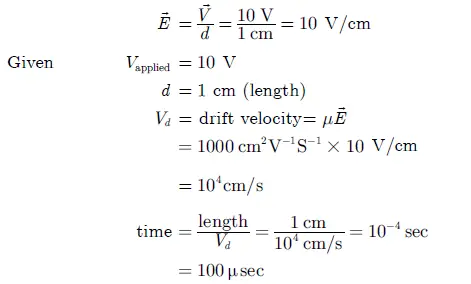

Explanation:
Gate EC-2015 - 2 Question Paper With Solutions
