Gate EE-2012 Question Paper With Solutions

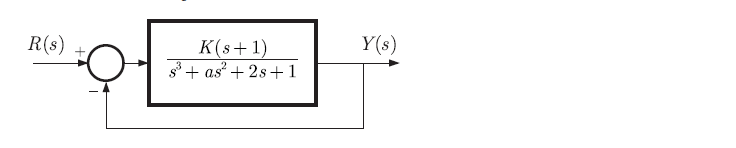

Q. 43 The feedback system shown below oscillates at 2 rad/s when

Gate EE-2012 Question Paper With Solutions
(A) K = 2 and a = 0.75

(B) K = 3 and a = 0.75

(C) K = 4 and a = 0.5

(D) K = 2 and a = 0.5

Answer:(A)

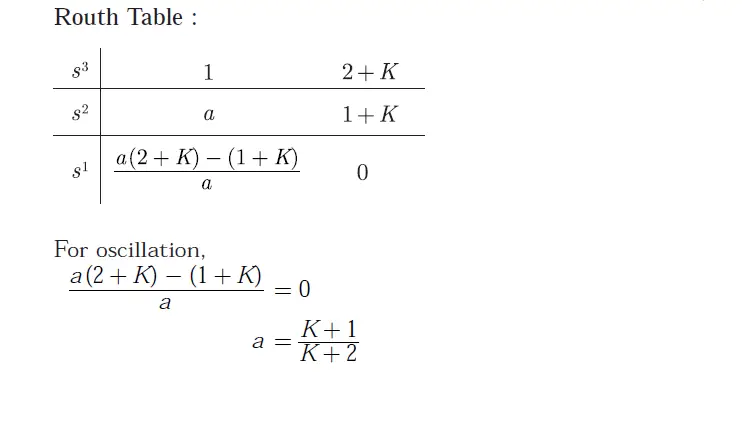

Explanation:

Gate EE-2012 Question Paper With SolutionsGate EE-2012 Question Paper With SolutionsGate EE-2012 Question Paper With Solutions
