Gate EE-2003 Question Paper With Solutions

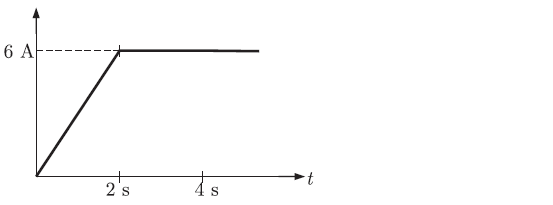

Q. 1 Figure Shows the waveform of the current passing through an inductor of
resistance and inductance 2 H. The energy absorbed by the inductor in the
first four seconds is

Gate EE-2003 Question Paper With Solutions

(A) 144 J

(B) 98 J

(C) 132 J

(D) 168 J

Answer: (C)

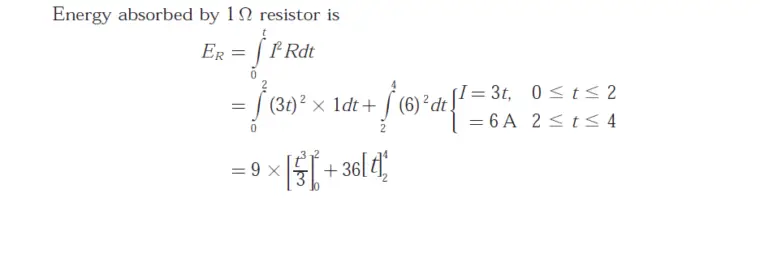

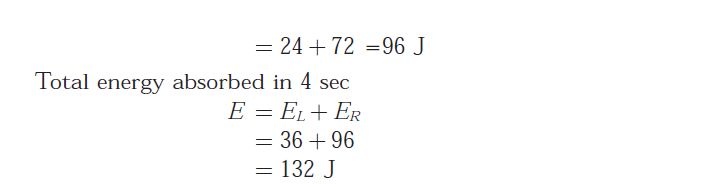

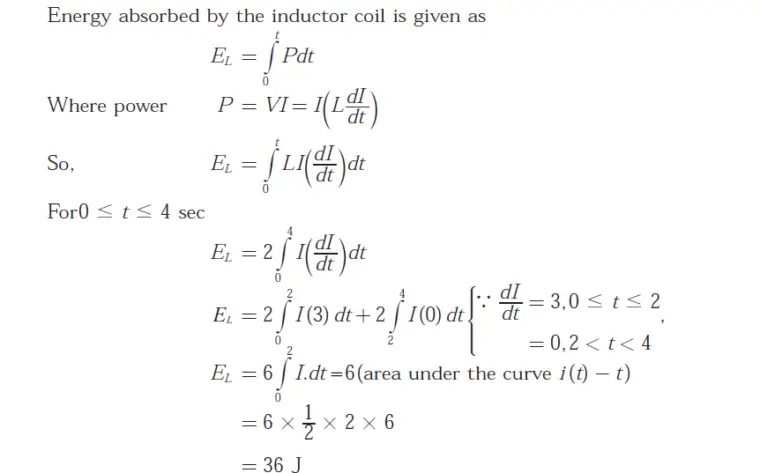

Explanation:

Gate EE-2003 Question Paper With SolutionsGate EE-2003 Question Paper With SolutionsGate EE-2003 Question Paper With Solutions
