Gate EE-2003 Question Paper With Solutions

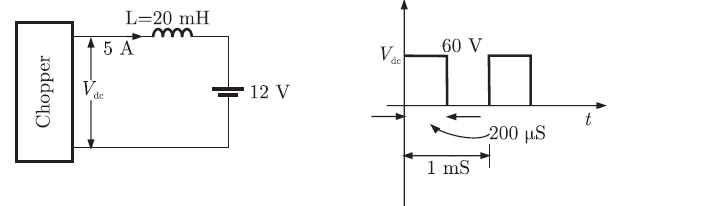

Q. 87 A chopper is employed to charge a battery as shown in figure. The charging
current is 5 A. The duty ratio is 0.2. The chopper output voltage is also shown
in the figure. The peak to peak ripple current in the charging current is Gate EE-2003 Question Paper With Solutions
(A) 0.48 A

(B) 1.2 A

(C) 2.4 A

(D) 1 A

Answer:(A)

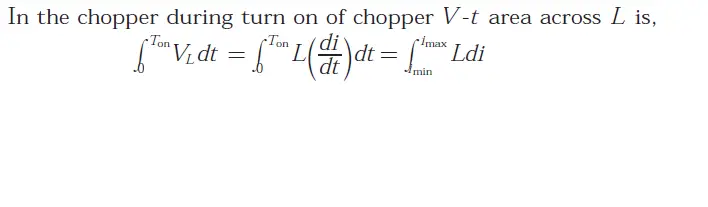

Explanation:

Gate EE-2003 Question Paper With SolutionsGate EE-2003 Question Paper With Solutions
