Q. 59 A generator delivers power of 1.0 p.u. to an infinite bus through a purely reactive network. The maximum power that could be delivered by the generator is 2.0 p.u. A three-phase fault occurs at the terminals of the generator which reduces the generator output to zero. The fault is cleared after Gate EE-2003 Question Paper With Solutions second. The original network is then restored. The maximum swing of the rotor angle is found to beGate EE-2003 Question Paper With Solutions electrical degree. Then the rotor angle in electrical degrees atGate EE-2003 Question Paper With Solutions is

(A) 55

(B) 70

(C) 69.14

(D) 72.4

Answer:(C)

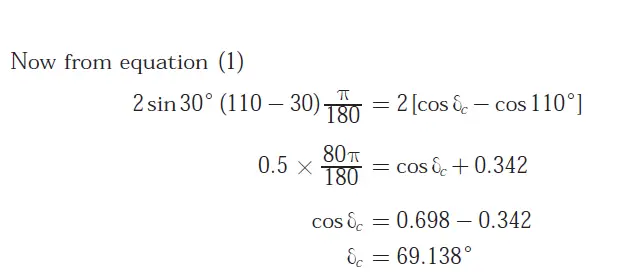

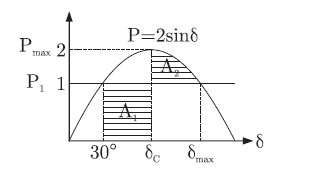

Explanation:

Gate EE-2003 Question Paper With SolutionsGate EE-2003 Question Paper With SolutionsGate EE-2003 Question Paper With Solutions
