Q. 45 Following are some of the properties of rotating electrical machines
P. Stator winding current is dc, rotor winding current is ac.
Q. Stator winding current is ac, rotor winding current is dc.
R. Stator winding current is ac, rotor winding current is ac.
S. Stator has salient poles and rotor has commutator.
T. Rotor has salient poles and sliprings and stator is cylindrical.
U. Both stator and rotor have poly-phase windings.

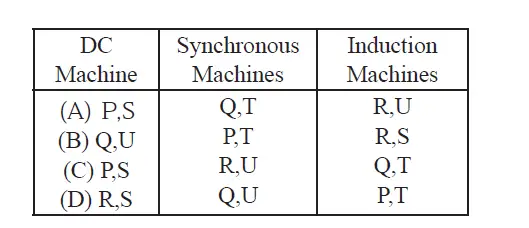

DC machines, Synchronous machines and Induction machines exhibit some of
the above properties as given in the following table.
Indicate the correct combination from this table
Gate EE-2003 Question Paper With Solutions
Answer:(A)

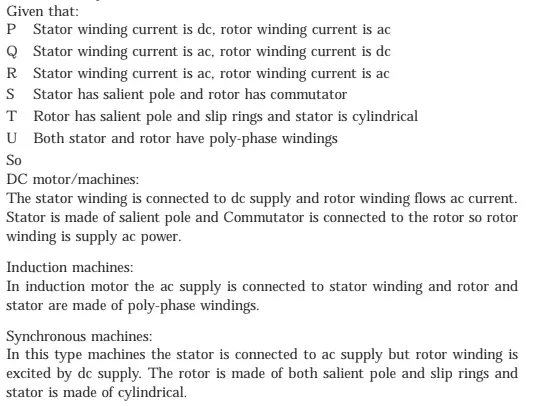

Explanation:Gate EE-2003 Question Paper With Solutions
