Gate EE-2003 Question Paper With Solutions

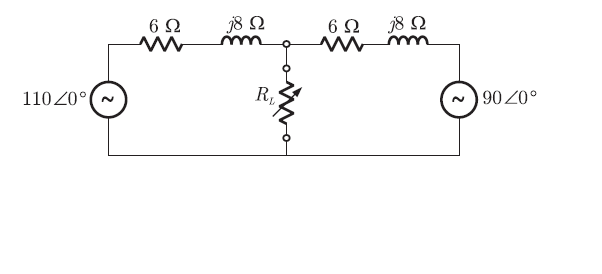

Q. 33 Two ac sources feed a common variable resistive load as shown in figure.
Under the maximum power transfer condition, the power absorbed by the load
resistance  is

(A) 2200 W

(B) 1250 W

(C) 1000 W

(D) 625 W

Answer: (D)

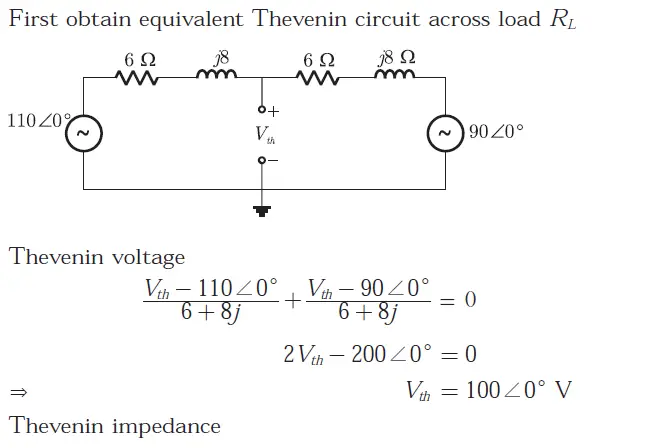

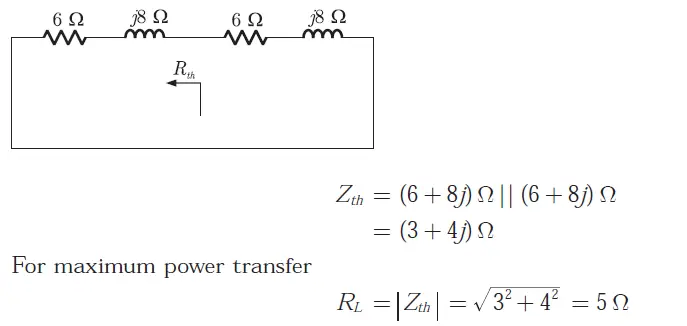

Explanation:
