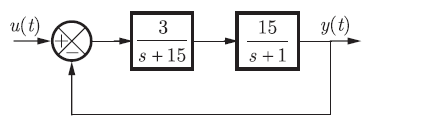

Q. 72 The block diagram shown in figure gives a unity feedback closed loop control
system. The steady state error in the response of the above system to unit step
input is Gate EE-2003 Question Paper With Solutions
(A) 25%

(B) 0.75 %

(C) 6%

(D) 33%

Answer:(A)

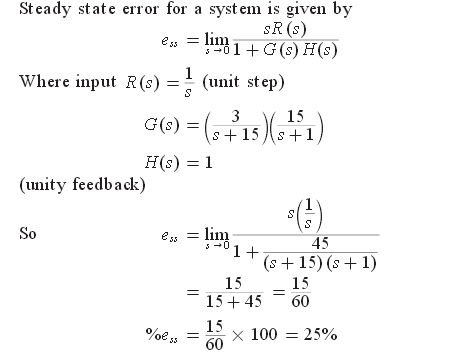

Explanation:

Gate EE-2003 Question Paper With Solutions
