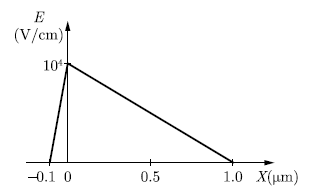

Q. 49 The electric field profile in the depletion region of a p-n junction in equilibrium is shown in the figure. Which one of the following statements is NOT TRUE?
(A) The left side of the junction is n-type and the right side is p-type
(B) Both the n-type and p-type depletion regions are uniformly doped
(C) The potential difference across the depletion region is 700 mV
(D) If the p-type region has a doping concentration of
, then the doping concentration in the n-type region will be
Answer: (C)

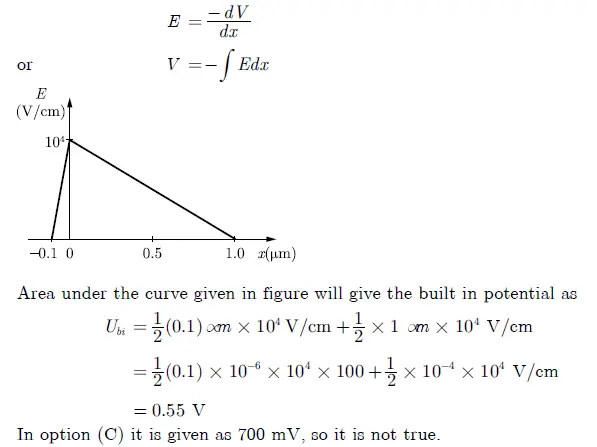

Explanation:
