Gate EE-2014-3 Question Paper With Solutions

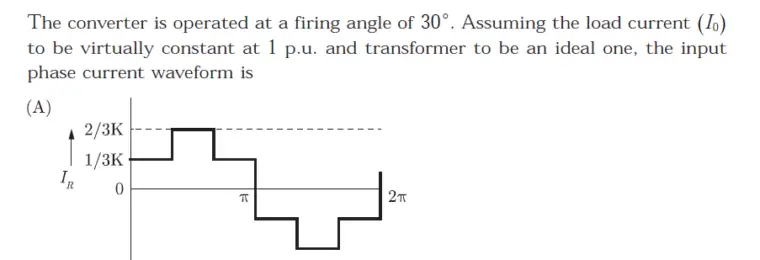

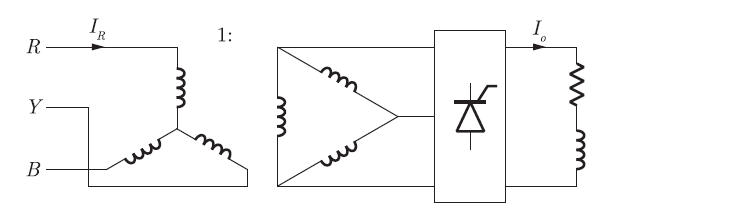

Q. 63 A three-phase fully controlled bridge converter is fed through star-delta transformer
as shown in the figure.

Gate EE-2014-3 Question Paper With Solutions Gate EE-2014-3 Question Paper With Solutions Gate EE-2014-3 Question Paper With Solutions Gate EE-2014-3 Question Paper With Solutions

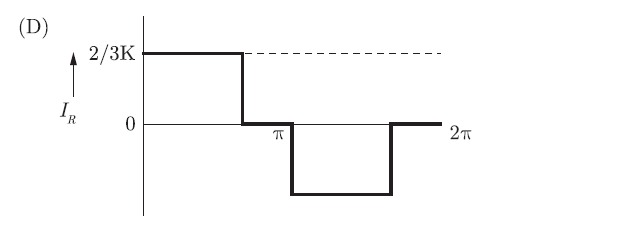

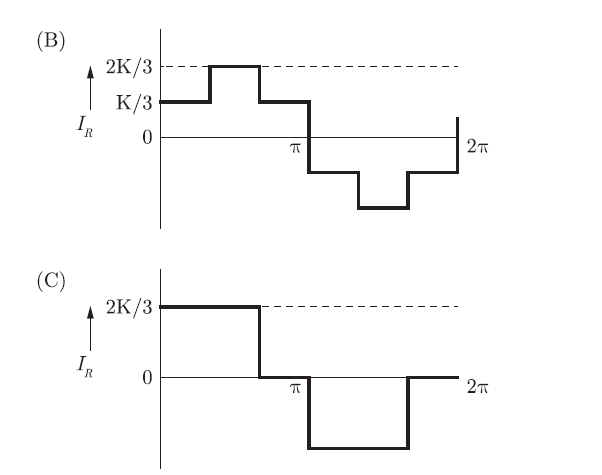

Answer:(B)

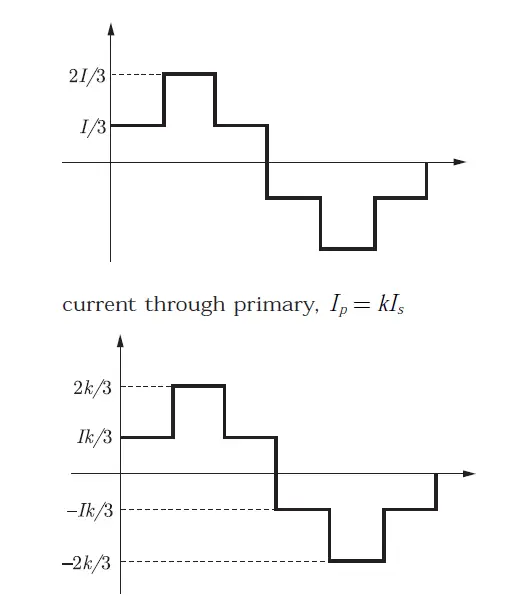

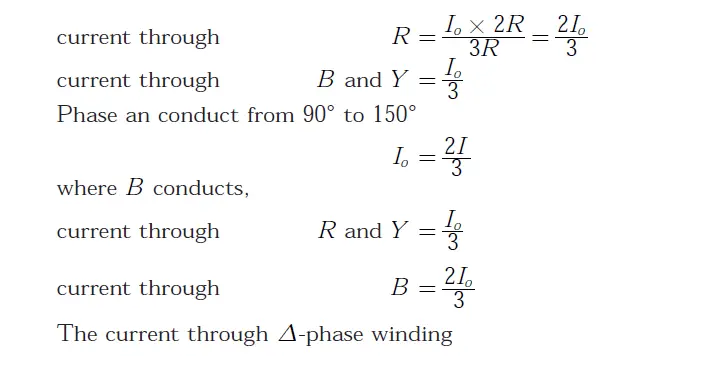

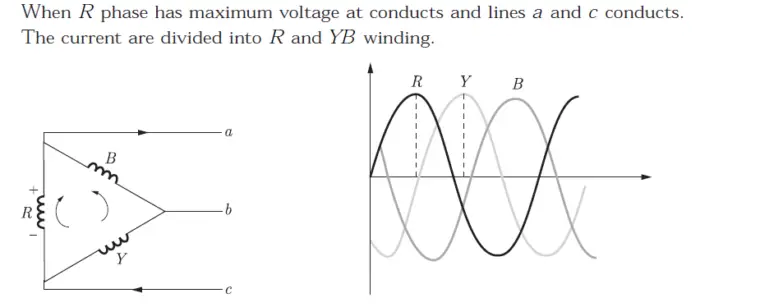

Explanation:

Gate EE-2014-3 Question Paper With Solutions Gate EE-2014-3 Question Paper With SolutionsGate EE-2014-3 Question Paper With Solutions

Learn More:   Gate EC-2014 - 2 Question Paper With Solutions
