Gate EE-2014-3 Question Paper With Solutions

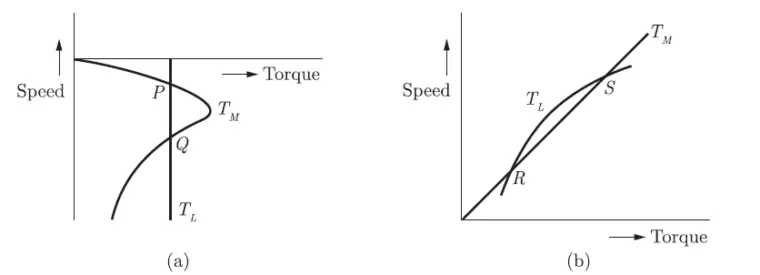

Q. 35 The torque speed characteristics of motor Gate EE-2014-3 Question Paper With Solutions and load Gate EE-2014-3 Question Paper With Solutions for two cases are
shown in the figures (a) and (b). The load torque is equal to motor torque at
points P, Q, R and S .

Gate EE-2014-3 Question Paper With Solutions
The stable operating points are

(A) P and R

(B) P and S

(C) Q and R

(D) Q and S

Answer:(B)

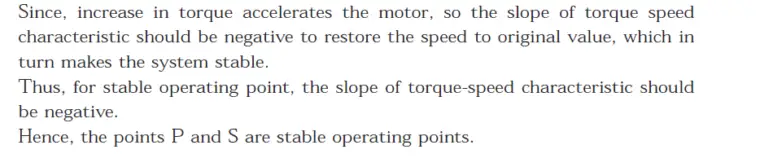

Explanation:

Gate EE-2014-3 Question Paper With Solutions
