Gate EE-2014-3 Question Paper With Solutions

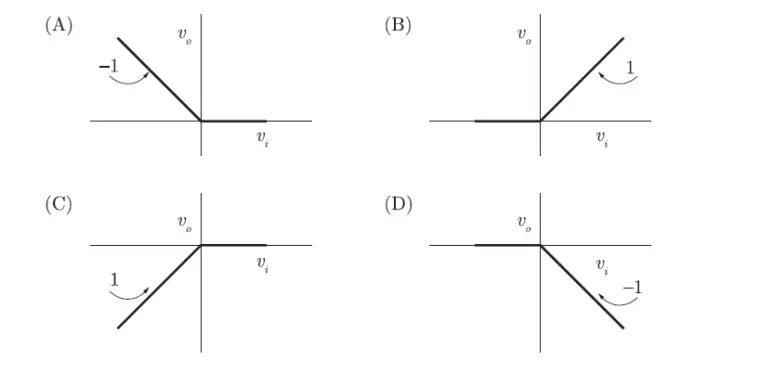

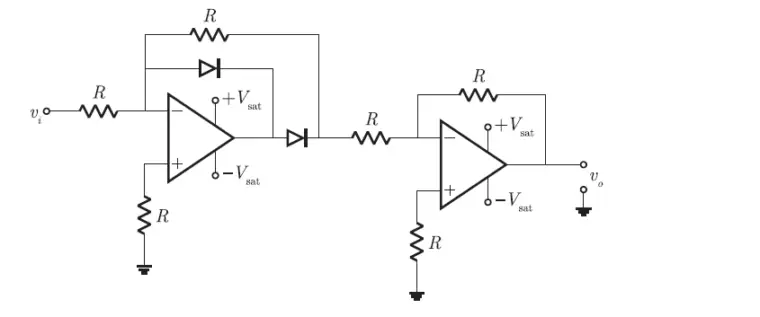

Q. 60 The transfer characteristic of the Op-amp circuit shown in figure is

Gate EE-2014-3 Question Paper With SolutionsGate EE-2014-3 Question Paper With Solutions

Answer:(C)

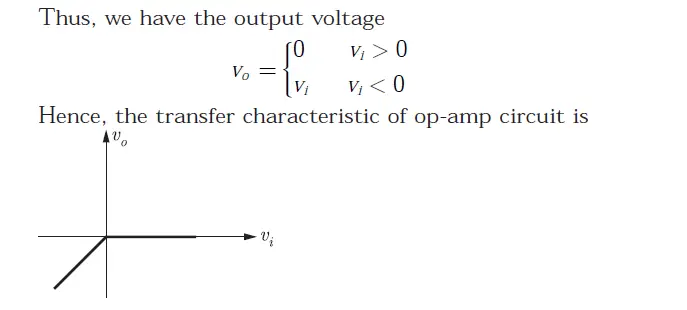

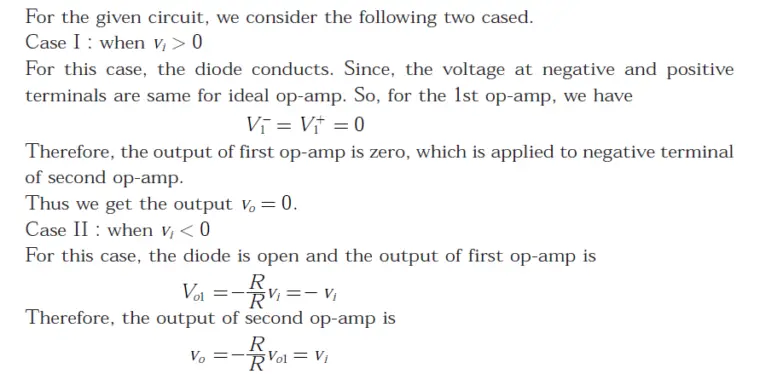

Explanation:

Gate EE-2014-3 Question Paper With Solutions Gate EE-2014-3 Question Paper With Solutions Gate EE-2014-3 Question Paper With Solutions
