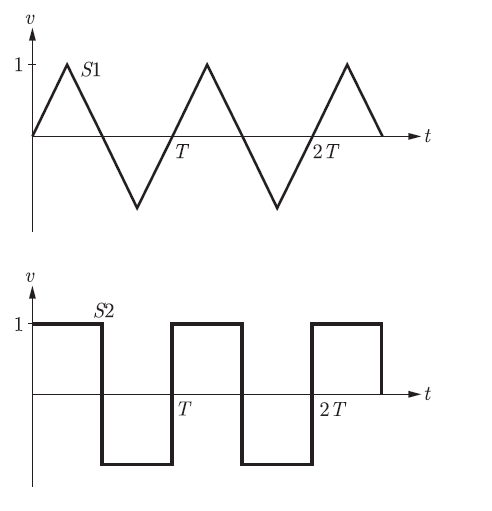

Q. 30 The two signals S1 and S2, shown in figure, are applied to Y and X deflection
plates of an oscilloscope.

Gate EE-2014-3 Question Paper With Solutions

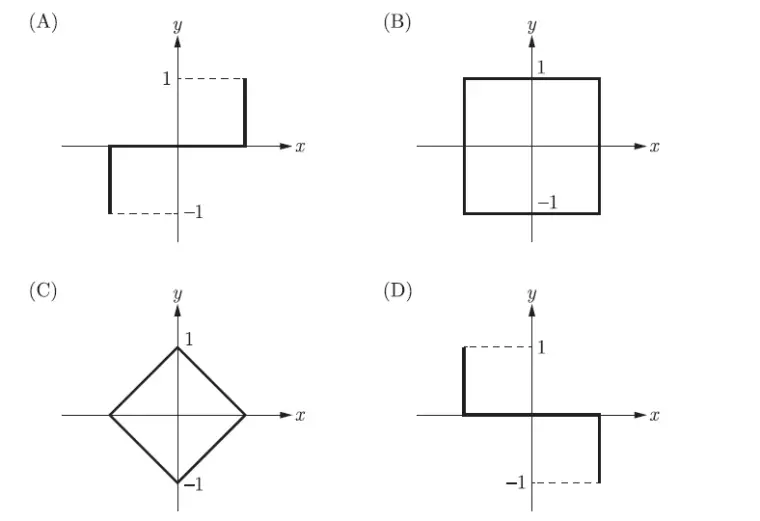

The waveform displayed on the screen is

Gate EE-2014-3 Question Paper With Solutions

Answer:(A)

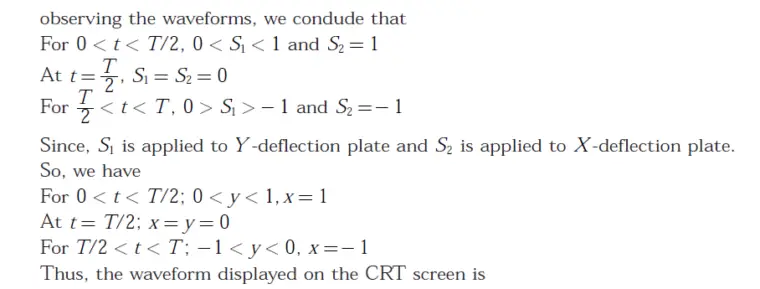

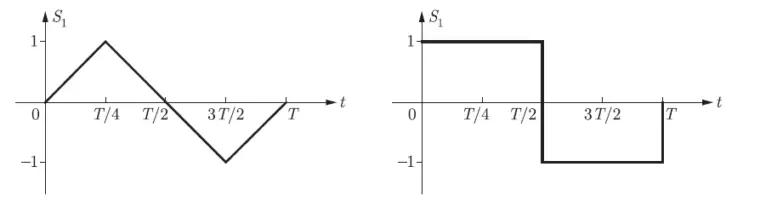

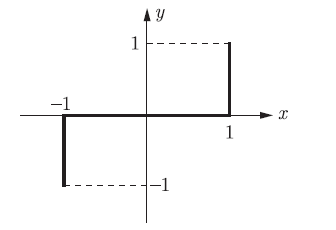

Explanation:

Gate EE-2014-3 Question Paper With SolutionsGate EE-2014-3 Question Paper With SolutionsGate EE-2014-3 Question Paper With SolutionsGate EE-2014-3 Question Paper With Solutions
