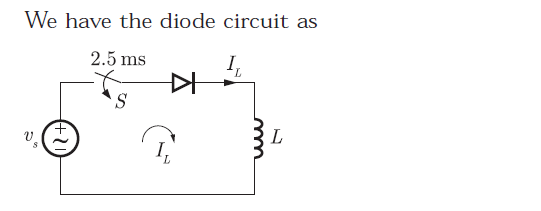

Q. 64 A diode circuit feeds an ideal inductor as shown in the figure. Given
Gate EE-2014-3 Question Paper With Solutions where Gate EE-2014-3 Question Paper With Solutionsw = 100p rad/s, and L = 31.83mH. The initial value of inductor current is zero. Switch S is closed at t = 2.5ms. The peak value of inductor current Gate EE-2014-3 Question Paper With Solutions (in A) in the first cycle is _____.

Answer:(17.07 A)

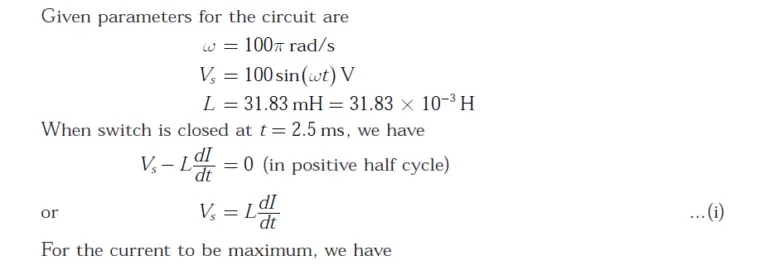

Explanation:

Gate EE-2014-3 Question Paper With Solutions Gate EE-2014-3 Question Paper With Solutions Gate EE-2014-3 Question Paper With Solutions
