Gate EE-2014-3 Question Paper With Solutions

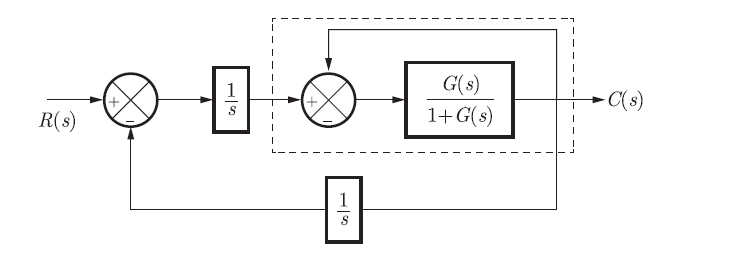

Q. 54 The block diagram of a system is shown in the figure

Gate EE-2014-3 Question Paper With SolutionsGate EE-2014-3 Question Paper With Solutions

Answer:(B)

Explanation:

Gate EE-2014-3 Question Paper With Solutions Gate EE-2014-3 Question Paper With Solutions Gate EE-2014-3 Question Paper With Solutions Gate EE-2014-3 Question Paper With Solutions Gate EE-2014-3 Question Paper With Solutions Gate EE-2014-3 Question Paper With Solutions Gate EE-2014-3 Question Paper With Solutions Gate EE-2014-3 Question Paper With Solutions
