Gate EE-2014-3 Question Paper With Solutions

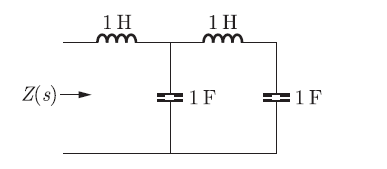

Q. 18 The driving point impedance Z(s )for the circuit shown below is

Gate EE-2014-3 Question Paper With SolutionsGate EE-2014-3 Question Paper With Solutions

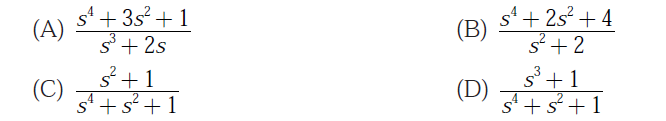

Answer:(A)

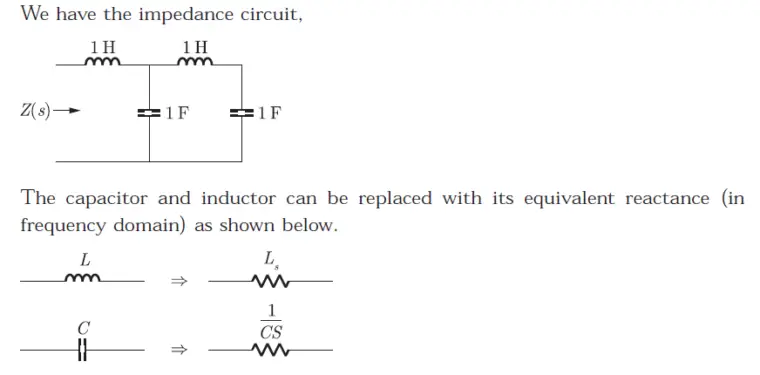

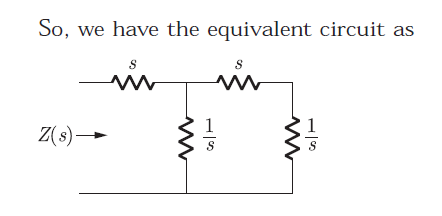

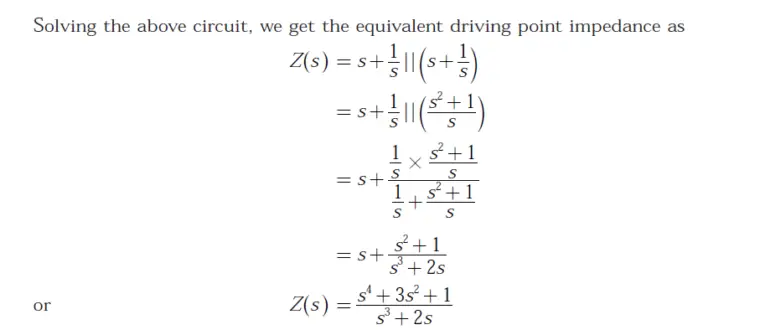

Explanation:

Gate EE-2014-3 Question Paper With SolutionsGate EE-2014-3 Question Paper With SolutionsGate EE-2014-3 Question Paper With Solutions
