Q. 64 A single-phase SCR based ac regulator is feeding power to a load consisting
of
resistance and 16 mH inductance. The input supply is 230 V, 50 Hz ac.
The maximum firing angle at which the voltage across the device becomes zero
all throughout and the rms value of current through SCR, under this operating
condition, are
Answer:(C)

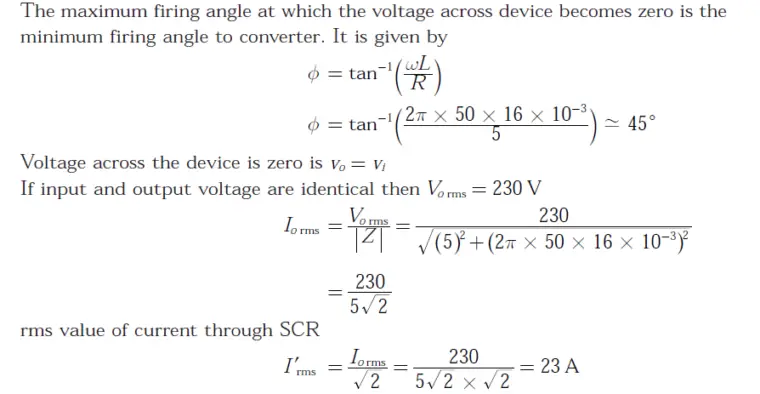

Explanation:
