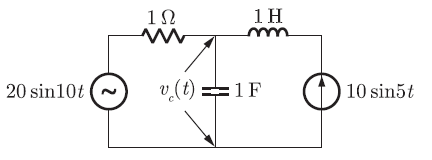

Q. 40 The voltage across the capacitor, as shown in the figure, is expressed as
The values of
A1 and A2 respectively, are
(A) 2.0 and 1.98
(B) 2.0 and 4.20
(C) 2.5 and 3.50
(D) 5.0 and 6.40
Answer:(A)
Explanation:
Q. 40 The voltage across the capacitor, as shown in the figure, is expressed as
The values of A1 and A2 respectively, are
(A) 2.0 and 1.98
(B) 2.0 and 4.20
(C) 2.5 and 3.50
(D) 5.0 and 6.40
Answer:(A)

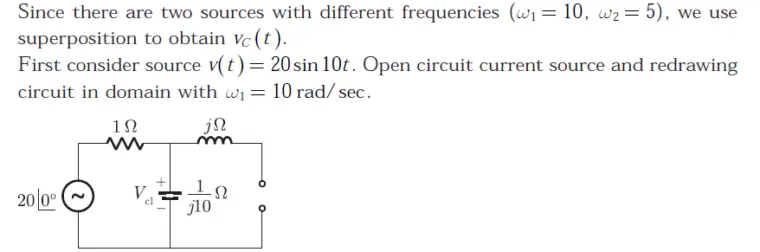

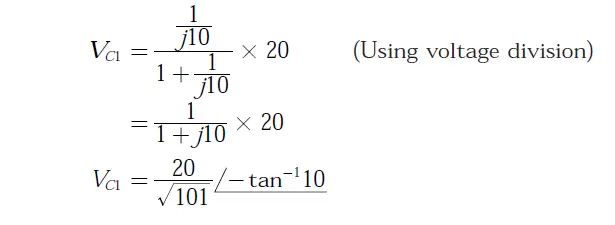

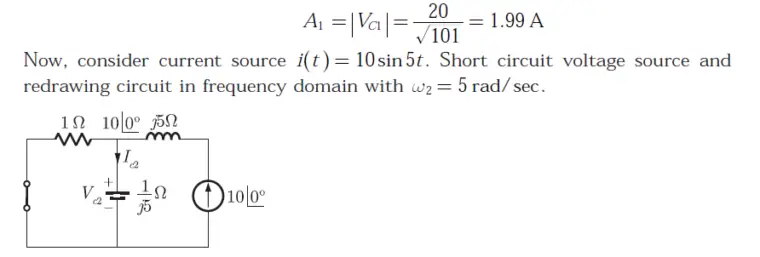

Explanation:
