Q. 58 Two ammeters X and Y have resistances of
respectively and
they give full-scale deflection with 150 mA and 250 mA respectively. The ranges
have been extended by connecting shunts so as to give full scale deflection with
15 A. The ammeters along with shunts are connected in parallel and then placed
in a circuit in which the total current flowing is 15 A. The current in amperes
indicated in ammeter X is_____.
Answer:(10.16 )

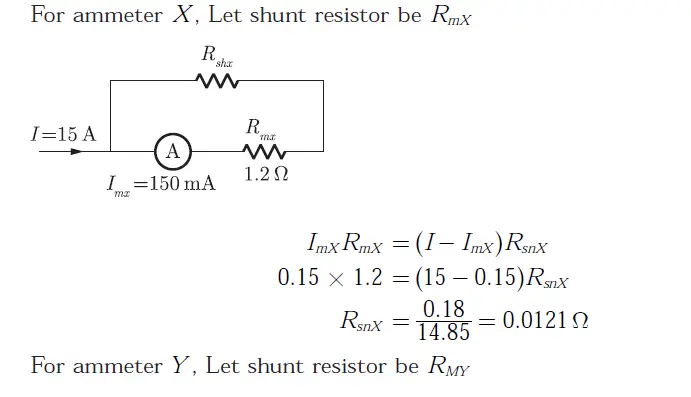

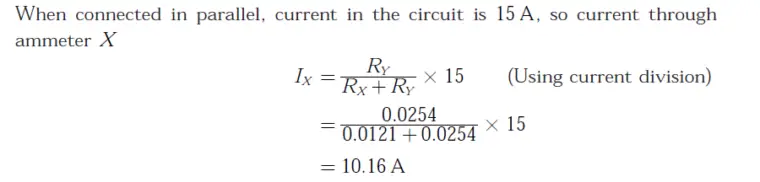

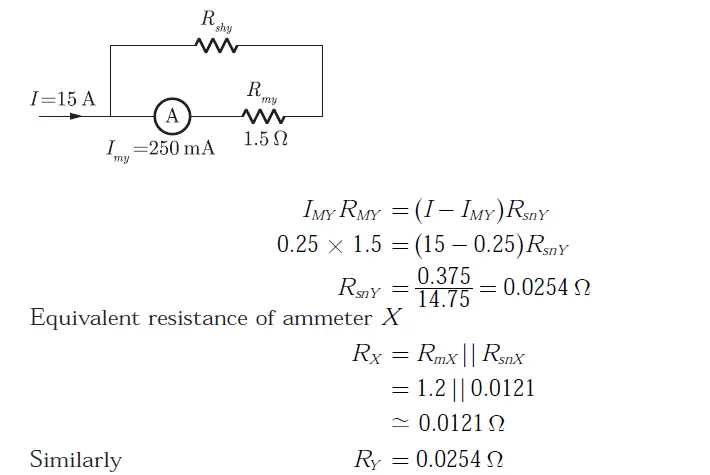

Explanation:
