Gate EE-2014-2 Question Paper With Solutions

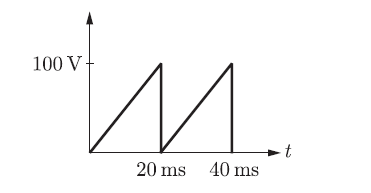

Q. 29 The saw-tooth voltage waveform shown in the figure is fed to a moving iron
voltmeter. Its reading would be close to __________

Answer:(57.74)

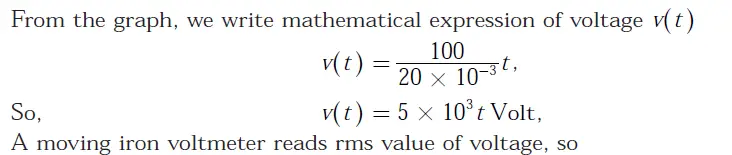

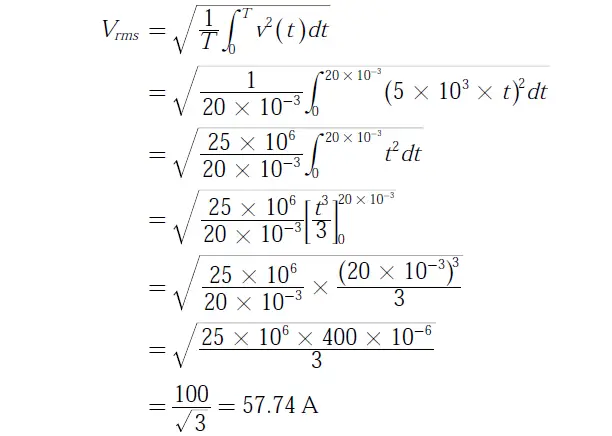

Explanation:
