Q. 54 The logic function implemented by the following circuit at the terminal OUT is

(A) P NOR Q

(B) P NAND Q

(C) P OR Q

(D) P AND Q

Answer: D

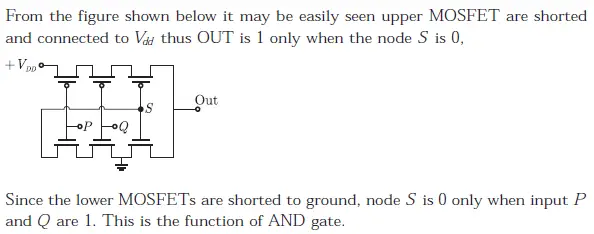

Explanation:
