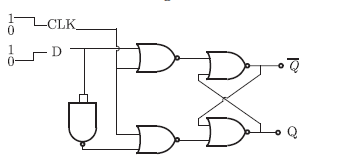

Q. 60 For the circuit shown in the figure, D has a transition from 0 to 1 after CLK changes from 1 to 0. Assume gate delays to be negligible
Which of the following statements is true

Gate EC-2008 Question Paper With Solutions

(A) Q goes to 1 at the CLK transition and stays at 1

(B) Q goes to 0 at the CLK transition and stays 0

(C) Q goes to 1 at the CLK tradition and goes to 0 when D goes to 1

(D) Q goes to 0 at the CLK transition and goes to 1 when D goes to 1

Answer: A

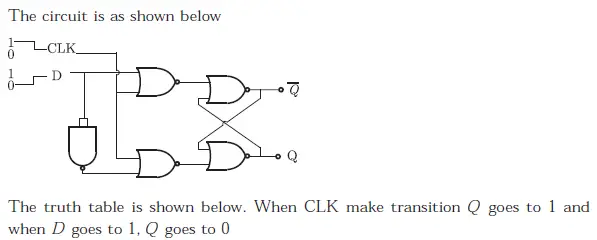

Explanation:

Gate EC-2008 Question Paper With Solutions
