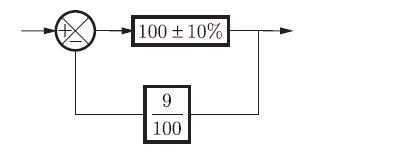

Q. 10 As shown in the figure, a negative feedback system has an amplifier of gain 100
with
tolerance in the forward path, and an attenuator of value 9/100 in
the feedback path. The overall system gain is approximately :
Answer:(A)

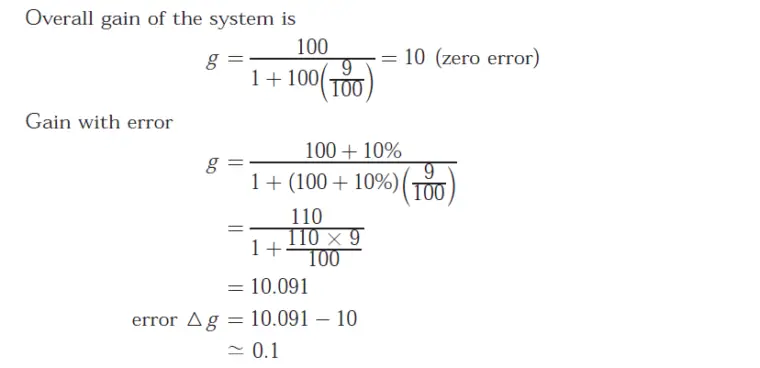

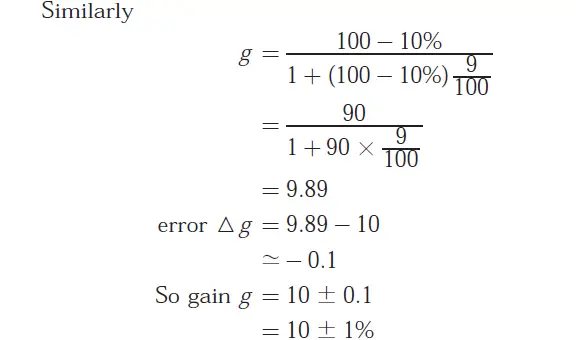

Explanation:
Q. 10 As shown in the figure, a negative feedback system has an amplifier of gain 100
with tolerance in the forward path, and an attenuator of value 9/100 in
the feedback path. The overall system gain is approximately :
Answer:(A)
Explanation:
