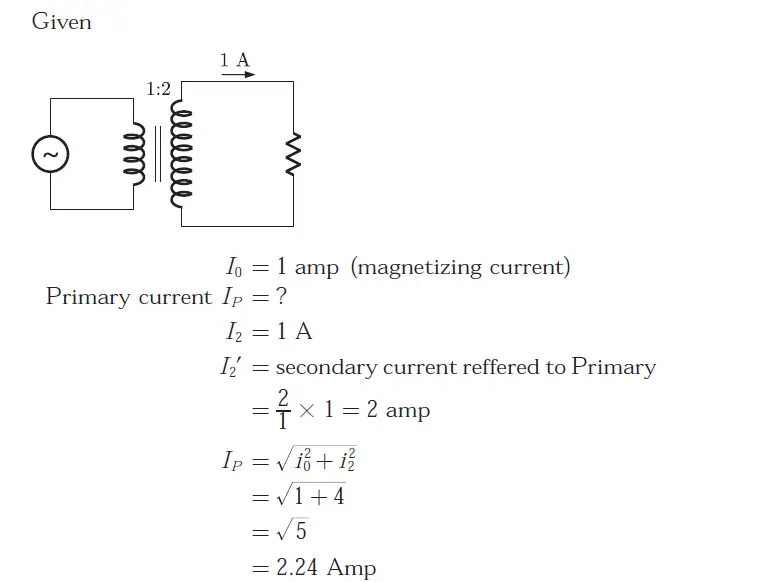

Q. 13 A Single-phase transformer has a turns ratio 1:2, and is connected to a purely
resistive load as shown in the figure. The magnetizing current drawn is 1 A, and
the secondary current is 1 A. If core losses and leakage reactances are neglected,
the primary current is
(A) 1.41 A
(B) 2 A
(C) 2.24 A
(D) 3 A
Answer:(C)
Explanation:
