Gate EC-2016 – 1 Question Paper With Solutions

Q.42 A first-order low-pass filter of time constant T is excited with different input signals (with zero initial conditions up to t = 0). Match the excitation signals X, Y , Z with the corresponding time responses for Gate EC-2016 - 1 Question Paper With Solutions
Gate EC-2016 - 1 Question Paper With Solutions

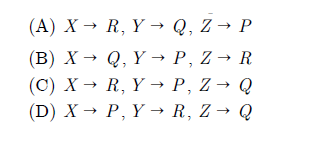

Gate EC-2016 - 1 Question Paper With Solutions

Answer: (C)

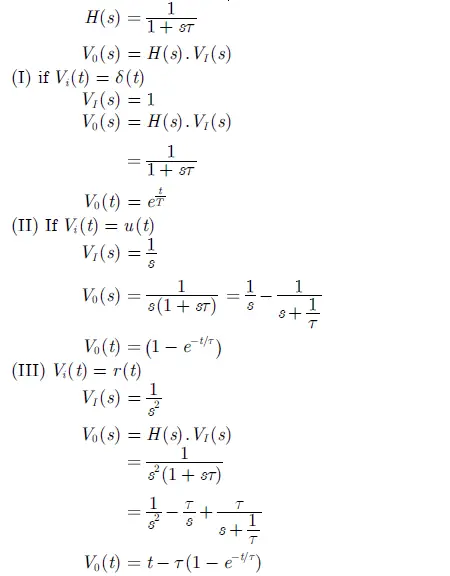

Explanation:
Gate EC-2016 - 1 Question Paper With Solutions
