Gate EC-2016 – 1 Question Paper With Solutions

Q.41 A network consisting of a finite number of linear resistor (R), inductor (L), and capacitor (C) elements, connected all in series or all in parallel, is excited with a source of the form Gate EC-2016 - 1 Question Paper With Solutionswhere Gate EC-2016 - 1 Question Paper With Solutions

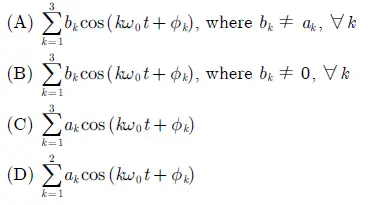

. The source has nonzero impedance. Which one of the following is a possible form of the output measured across a resistor in the network?
Gate EC-2016 - 1 Question Paper With Solutions
Answer: (A)

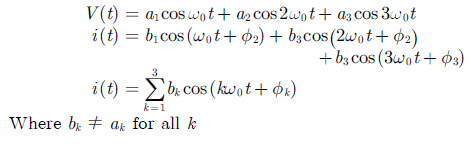

Explanation:
Gate EC-2016 - 1 Question Paper With Solutions

Gate EC-2016 - 1 Question Paper With Solutions
Gate EC-2016 - 1 Question Paper With Solutions
