Q. 8 The i -v characteristics of the diode in the circuit given below are
Gate EC-2012 Question Paper With Solutions

Gate EC-2012 Question Paper With Solutions

The current in the circuit is

(A) 10 mA

(B) 9.3 mA

(C) 6.67 mA

(D) 6.2 mA

Answer: D

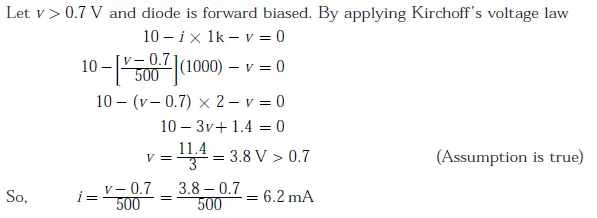

Explanation:
Gate EC-2012 Question Paper With Solutions
