Gate EC-2012 Question Paper With Solutions

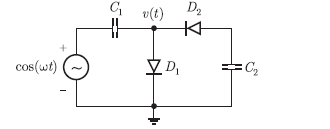

Q. 13 The diodes and capacitors in the circuit shown are ideal. The voltage v(t) across the diode Gate EC-2012 Question Paper With Solutions is

Gate EC-2012 Question Paper With Solutions

(A) cos (wt) – 1

(B) sin(wt)

(C) 1 – cos (wt)

(D) 1 – sin(wt)

Answer: A

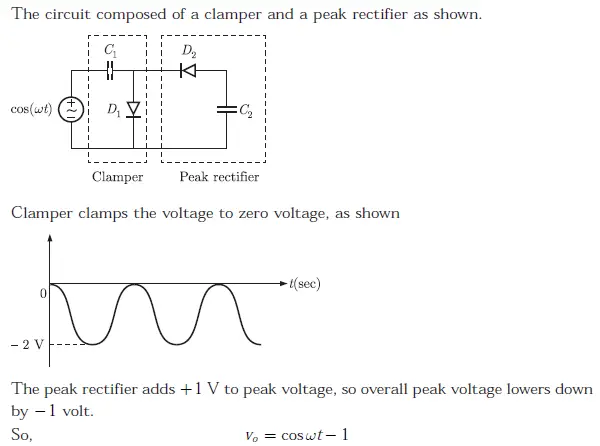

Explanation:

Gate EC-2012 Question Paper With Solutions
