Gate EE-2004 Question Paper With Solutions

Q. 90 A variable speed drive rated for 1500 rpm, 40 Nm is reversing under no load.

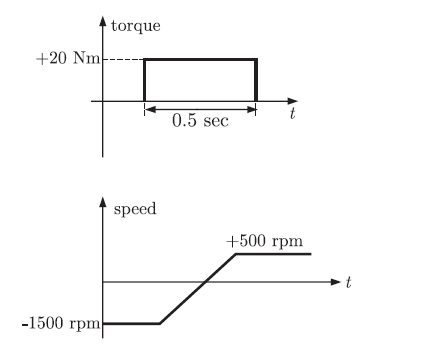

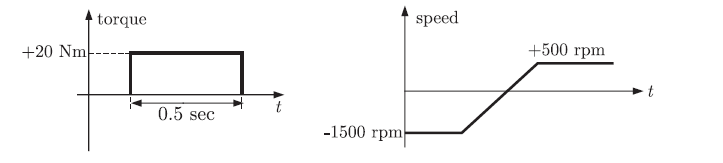

Figure shows the reversing torque and the speed during the transient. The
moment of inertia of the drive is

Gate EE-2004 Question Paper With SolutionsGate EE-2004 Question Paper With Solutions

Answer:(C)

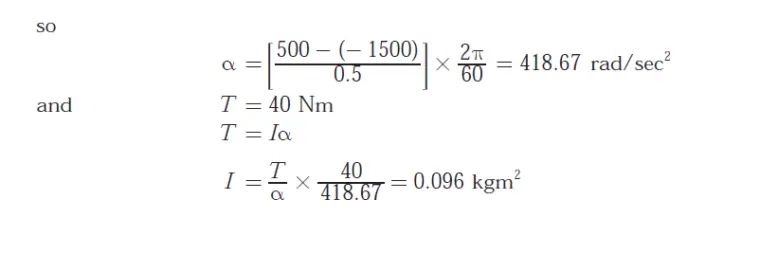

Explanation:

Gate EE-2004 Question Paper With SolutionsGate EE-2004 Question Paper With Solutions



Learn More:   Gate ME-2016-3 Question Paper With Solutions
