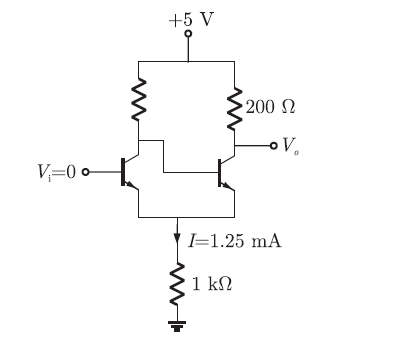

Q. 69 In the Schmitt trigger circuit shown in figure, if,Gate EE-2004 Question Paper With Solutions the output logic low level Gate EE-2004 Question Paper With Solutions is

Gate EE-2004 Question Paper With Solutions

(A) 1.25 V

(B) 1.35 V

(C) 2.50 V

(D) 5.00 V

Answer:(B)

Explanation:

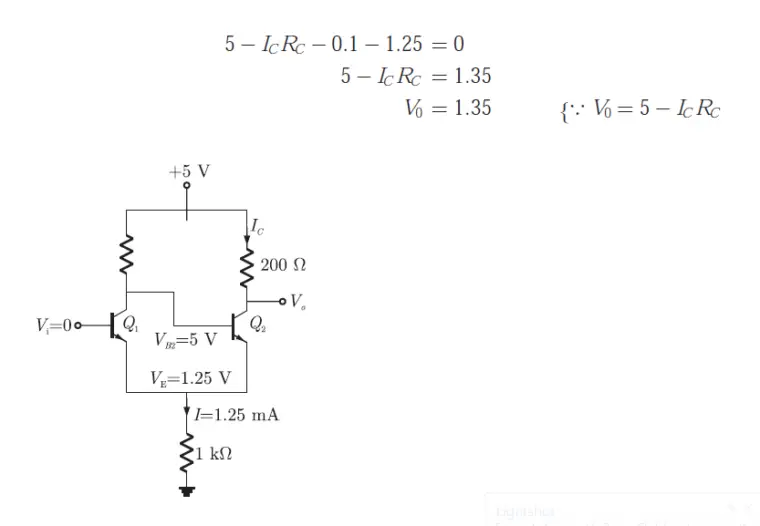

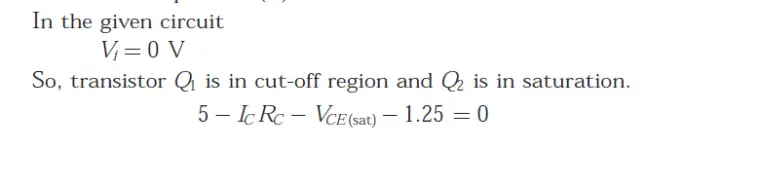

Gate EE-2004 Question Paper With SolutionsGate EE-2004 Question Paper With Solutions
