Gate EE-2004 Question Paper With Solutions

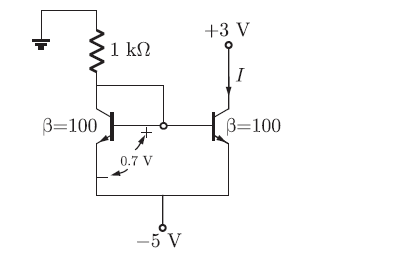

Q. 17 Two perfectly matched silicon transistor are connected as shown in figure. The  value of the current I is

Gate EE-2004 Question Paper With Solutions Gate EE-2004 Question Paper With Solutions

Answer:(C)

Explanation:

Gate EE-2004 Question Paper With SolutionsGate EE-2004 Question Paper With SolutionsGate EE-2004 Question Paper With Solutions

Learn More:   Gate EC-2017-1 Question Paper With Solutions
