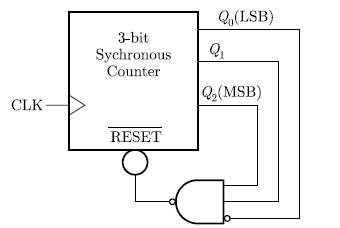

Q.55 For the circuit shown in the figure, the delay of the bubbled NAND gate is 2ns and that of the counter is assumed to be zero

Gate EC-2016 - 3 Question Paper With Solutions
If the clock (C1k) frequency is 1Ghz, the counter behaves as a

(A) mod-5 counter

(B) mod-6 counter

(C) mod-7 counter

(D) mod-8 counter

Answer: (D)

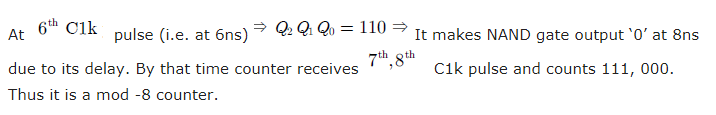

Explanation:Gate EC-2016 - 3 Question Paper With Solutions
