Gate EC-2016 – 3 Question Paper With Solutions

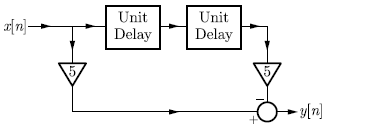

Q.46 The direct form structure of an FIR (finite impulse response) filter is shown in the figure.

The filter can be used to approximate a

(A) low-pass filter

(B) high-pass filter

(C) band-pass filter

(D) band-stop filter

Answer: (C)

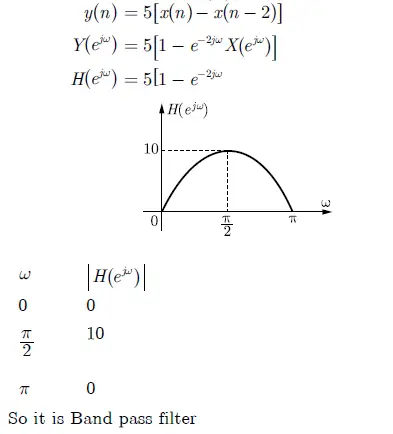

Explanation:
