Gate EE-2006 Question Paper With Solutions

Q. 66  A 3-phase fully controlled bridge converter with free wheeling diode is fed from 400 V, 50 Hz AC source and is operating at a firing angle ofGate EE-2006 Question Paper With Solutions . The load currentis assumed constant at 10 A due to high load inductance. The input displacementfactor (IDF) and the input power factor (IPF) of the converter will be

Gate EE-2006 Question Paper With Solutions

Answer:(C)

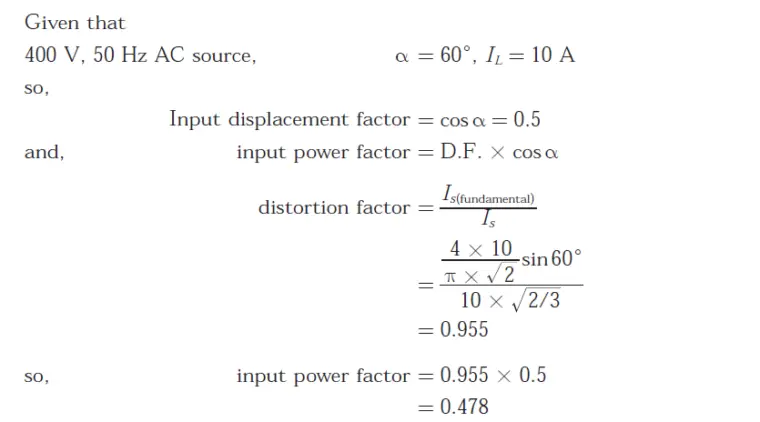

Explanation:

Gate EE-2006 Question Paper With Solutions

Learn More:   Gate EC-2016 - 2 Question Paper With Solutions
