Gate EE-2006 Question Paper With Solutions

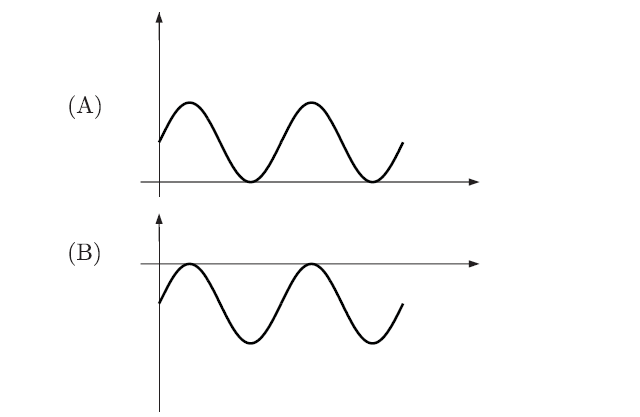

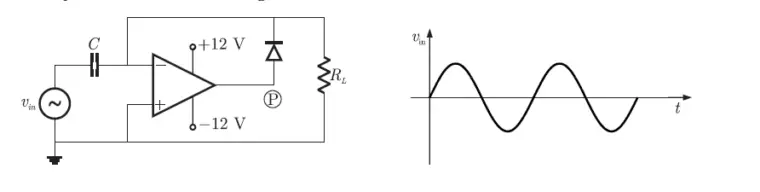

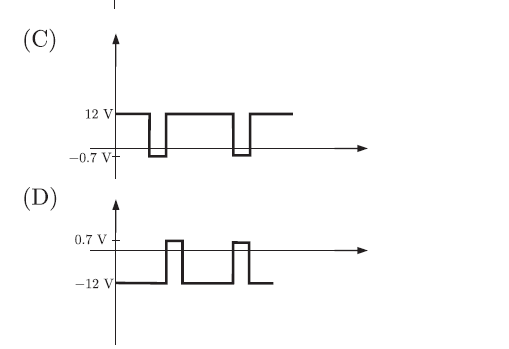

Q. 19 For a given sinusoidal input voltage, the voltage waveform at point P of the
clamper circuit shown in figure will be

Gate EE-2006 Question Paper With SolutionsGate EE-2006 Question Paper With SolutionsGate EE-2006 Question Paper With Solutions

Answer:(D)

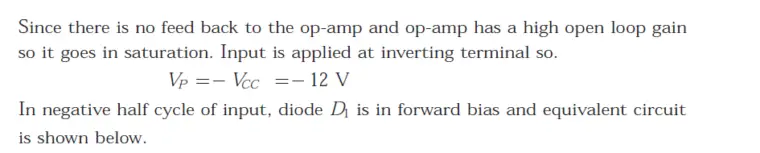

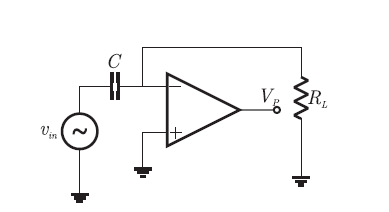

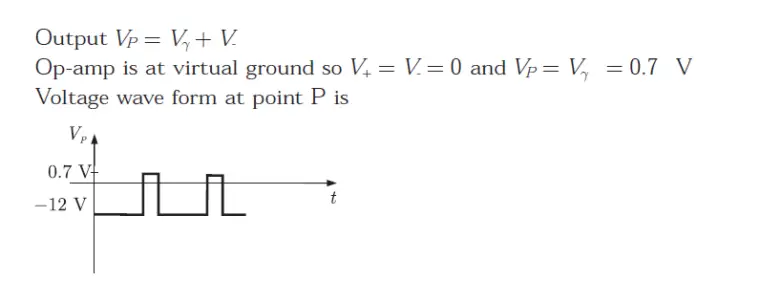

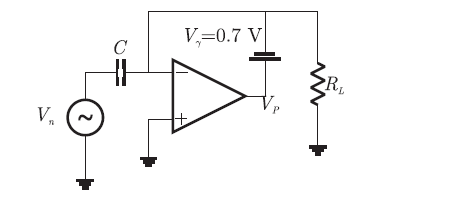

Explanation:

Gate EE-2006 Question Paper With Solutions

Gate EE-2006 Question Paper With SolutionsGate EE-2006 Question Paper With SolutionsGate EE-2006 Question Paper With Solutions
