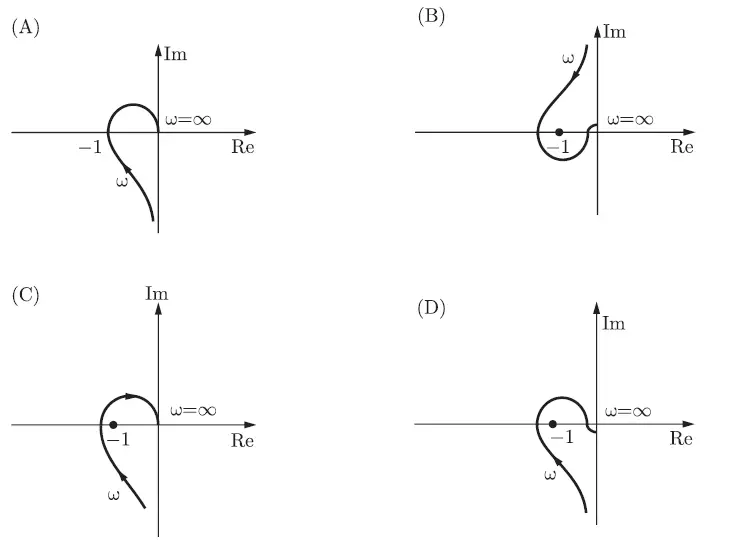

Q. 52 Consider the following Nyquist plots of loop transfer functions over Gate EE-2006 Question Paper With Solutions Gate EE-2006 Question Paper With Solutions. Which of these plots represent a stable closed loop system ?

Gate EE-2006 Question Paper With Solutions

(A) (1) only
(B) all, except (1)
(C) all, except(3)
(D) (1) and (2) only



Answer:(A)

Explanation:

Gate EE-2006 Question Paper With Solutions
