Gate EE-2006 Question Paper With Solutions

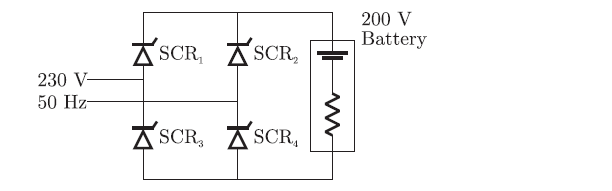

Q. 69 A single-phase bridge converter is used to charge a battery of 200 V having an internal resistanceGate EE-2006 Question Paper With Solutions of as shown in figure. The SCRs are triggered by a constant dc signal.IfGate EE-2006 Question Paper With Solutions gets open circuited, what will be the average charging current ?

Gate EE-2006 Question Paper With Solutions

(A) 23.8 A

(B) 15 A

(C) 11.9 A

(D) 3.54 A

Answer:(C)

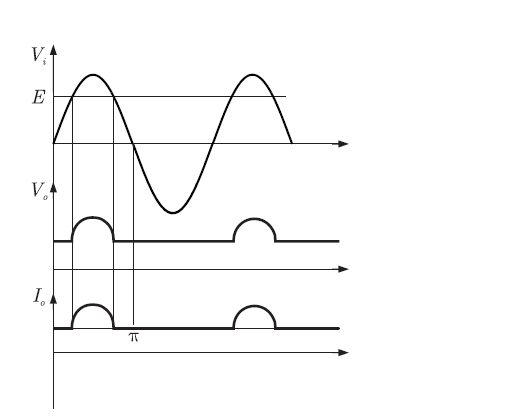

Explanation:

Gate EE-2006 Question Paper With Solutions

Gate EE-2006 Question Paper With Solutions
