Gate EE-2006 Question Paper With Solutions

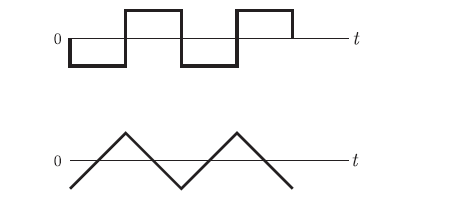

Q. 16 A sampling wattmeter (that computes power from simultaneously sampled values of voltage and current) is used to measure the average power of a load. The peak to peak voltage of the square wave is 10 V and the current is a triangular wave of 5 A p-p as shown in the figure. The period is 20 ms. The reading in W will be

Gate EE-2006 Question Paper With Solutions
(A) 0 W

(B) 25 W

(C) 50 W

(D) 100 W

Answer:(A)

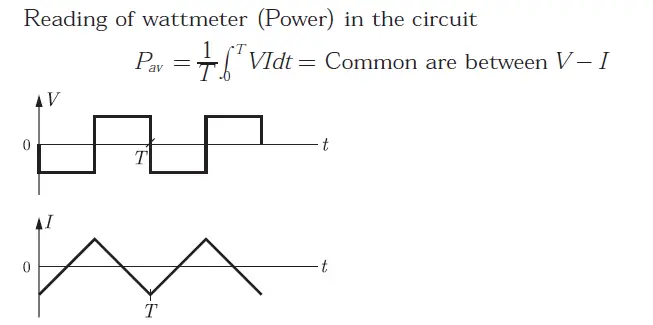

Explanation:

Gate EE-2006 Question Paper With SolutionsGate EE-2006 Question Paper With Solutions
