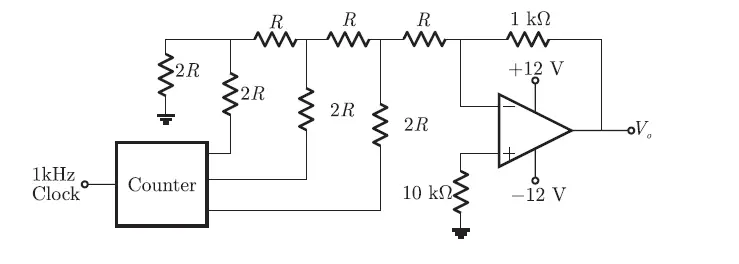

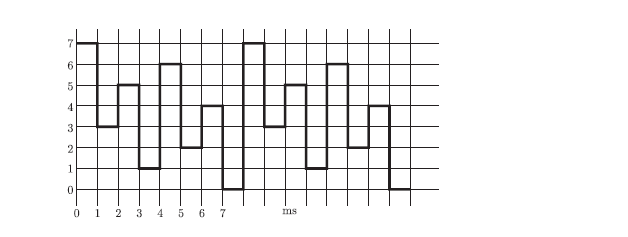

Q. 61 A student has made a 3-bit binary down counter and connected to the R-2R ladder type DAC, Gate EE-2006 Question Paper With Solutionsas shown in figure to generate a staircase waveform. The output achieved is different as shown in figure. What could be the

Gate EE-2006 Question Paper With Solutions Gate EE-2006 Question Paper With Solutions Gate EE-2006 Question Paper With Solutions

Answer:(*)

Explanation:

Not Required.
