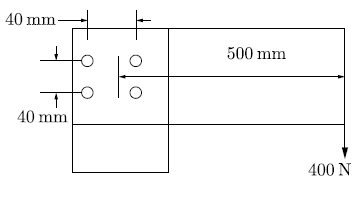

Q. 39 A horizontal plate has been joined to a vertical post using four rivets arranged
as shown in figure. The magnitude of the load on the worst loaded rivet (in N)
is_______

Gate ME 2015-1 Question Paper With Solutions

Answer: (1839.84)

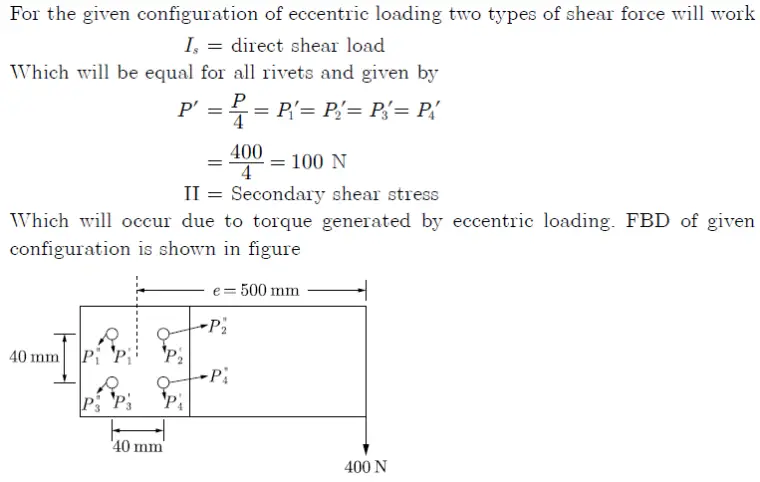

Explanation:

Gate ME 2015-1 Question Paper With Solutions

Gate ME 2015-1 Question Paper With Solutions

Gate ME 2015-1 Question Paper With Solutions
