Gate ME 2015-1 Question Paper With Solutions

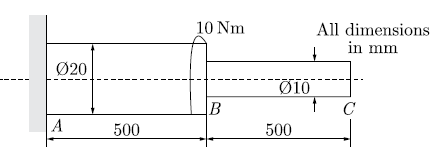

Q. 35 Consider a stepped shaft subjected to a twisting moment applied at B as shown
in the figure. Assume shear modulus, G = 77 GPa. The angle of twist at C (in
degrees) is _______

Gate ME 2015-1 Question Paper With Solutions

Answer: (0.23685)

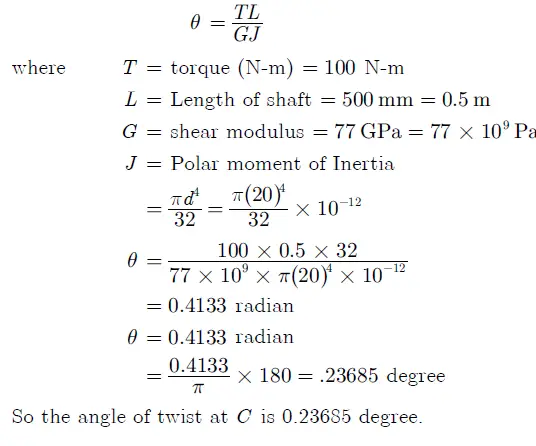

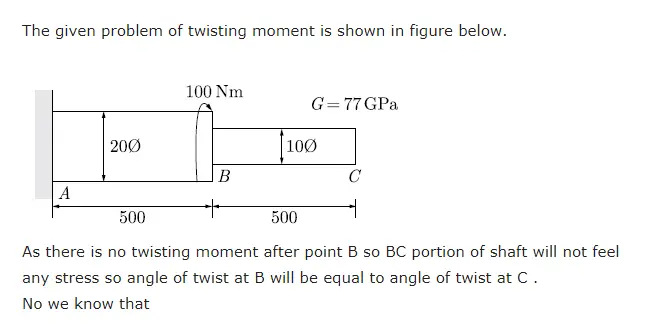

Explanation:

Gate ME 2015-1 Question Paper With Solutions

Gate ME 2015-1 Question Paper With Solutions

Learn More:   Gate ME 2014-1 Question Paper With Solutions
