Gate ME 2015-1 Question Paper With Solutions

Q. 36 A 10 mm diameter electrical conductor is covered by an insulation of 2 mm
thickness. The conductivity of the insulation is 0.08 W/m-K and the convection
coefficient at the insulation surface is Gate ME 2015-1 Question Paper With Solutions. Addition of further insulation
of the same material will

(A) increase heat loss continuously

(B) decrease heat loss continuously

(C) increase heat loss to a maximum and then decrease heat loss

(D) decrease heat loss to a minimum and then increase heat loss

Answer: (C)

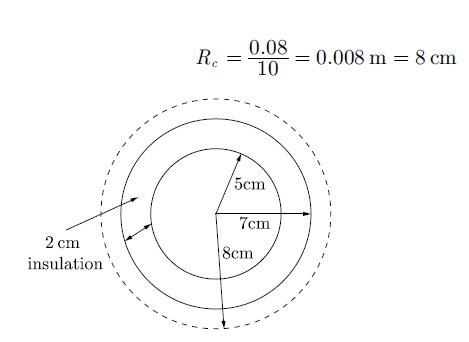

Explanation:

Gate ME 2015-1 Question Paper With Solutions

Gate ME 2015-1 Question Paper With Solutions

Gate ME 2015-1 Question Paper With Solutions
Gate ME 2015-1 Question Paper With Solutions
