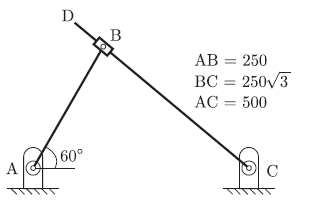

Q 36. For the configuration shown, the angular velocity of link AB is 10 rad/s counterclockwise. The magnitude of the relative sliding velocity (inGate ME-2010 Question Paper With Solutions ) of slider B with respect to rigid link CD is
Gate ME-2010 Question Paper With Solutions
(A) 0

(B) 0.86

(C) 1.25

(D) 2.50

Answer: (D)

Explanation:

Gate ME-2010 Question Paper With Solutions

Gate ME-2010 Question Paper With Solutions
