Gate ME-2010 Question Paper With Solutions

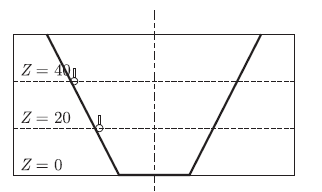

Q 45. A taper hole is inspected using a CMM, with a probe of 2 mm diameter. At a height, Z = 10 mm from the bottom, 5 points are touched and a diameter of circle (not compensated for probe size) is obtained as 20 mm. Similarly, a 40 mm diameter is obtained at a height Z = 40 mm. The smaller diameter (in mm) of hole at Z = 0 is

Gate ME-2010 Question Paper With Solutions
(A) 13.334

(B) 15.334

(C) 15.442

(D) 15.542

Answer: (A)

Explanation:

Gate ME-2010 Question Paper With Solutions

Gate ME-2010 Question Paper With Solutions
