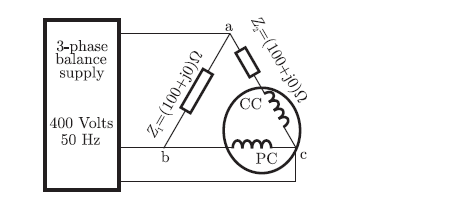

Q. 48 The figure shows a three-phase delta connected load supplied from a 400V, 50Hz, 3-phase balanced source. The pressure coil (PC) and current coil (CC) of a wattmeter are connected to the load as shown, with the coil polarities suitably selected to ensure a positive deflection. The wattmeter reading will be
(A) 0
(B) 1600 Watt
(C) 800 Watt
(D) 400 Watt
Answer:(C)

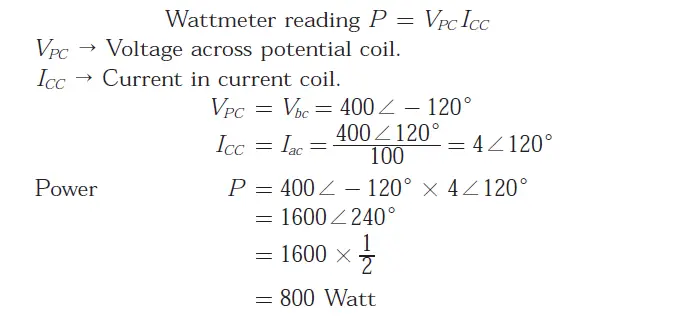

Explanation:
