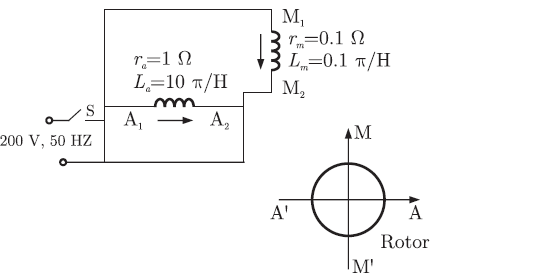

Q. 42 A 200 V, 50 Hz, single-phase induction motor has the following connection diagram and winding orientations as shown. MM’ is the axis of the main stator winding
(M M ) and AA’ is that of the auxiliary winding. Directions of the winding
axis indicate direction of flux when currents in the windings are in the directions shown. Parameters of each winding are indicated. When switch S is closed the motor
,
(A) rotates clockwise
(B) rotates anti-clockwise
(C) does not rotate
(D) rotates momentarily and comes to a halt
Answer:(*)
Explanation:
Not Required.
